Data Sheet:
QTRAP 5500 data sheet.pdf

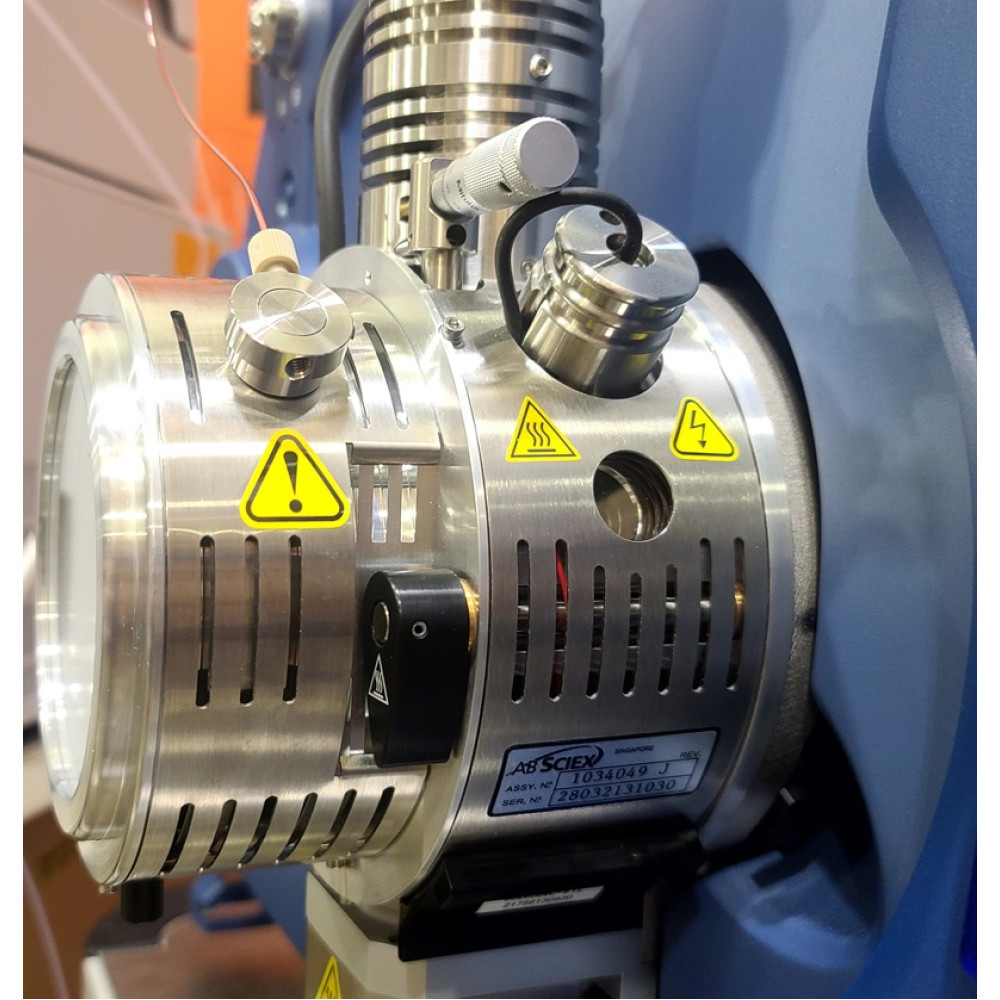

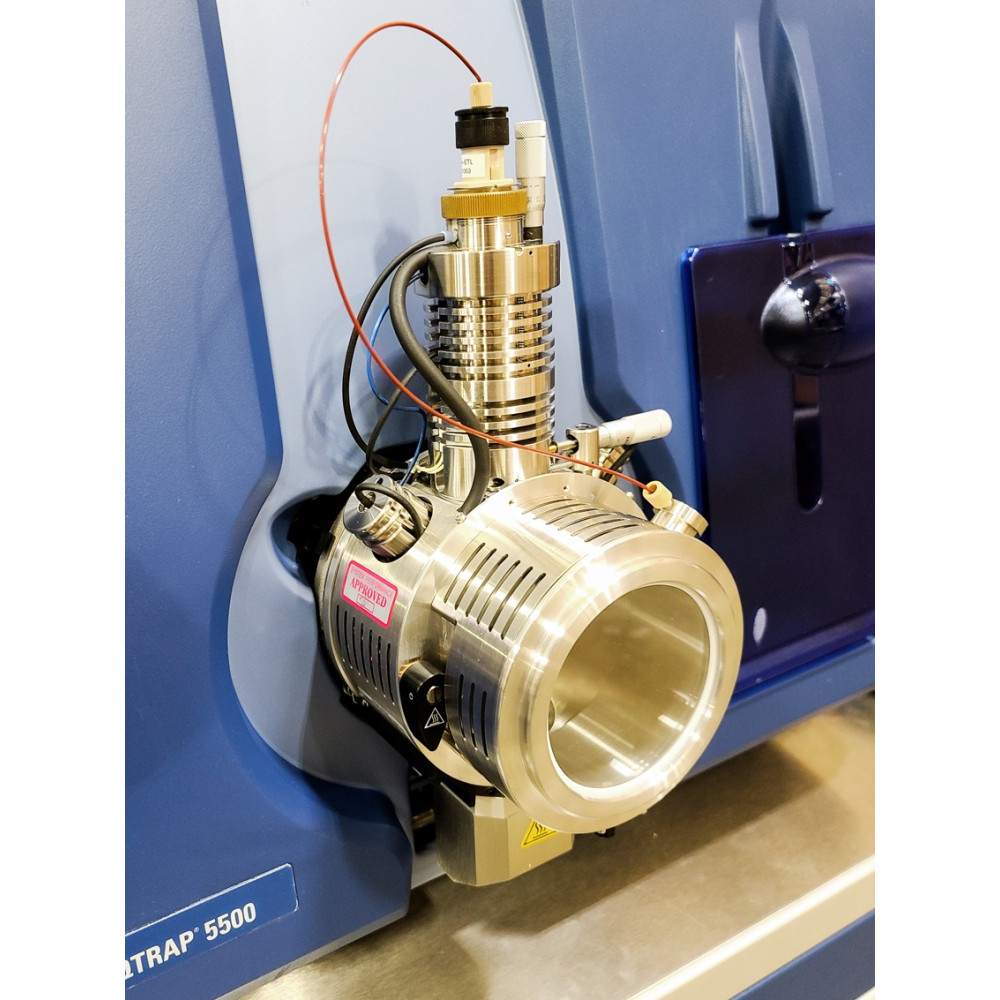

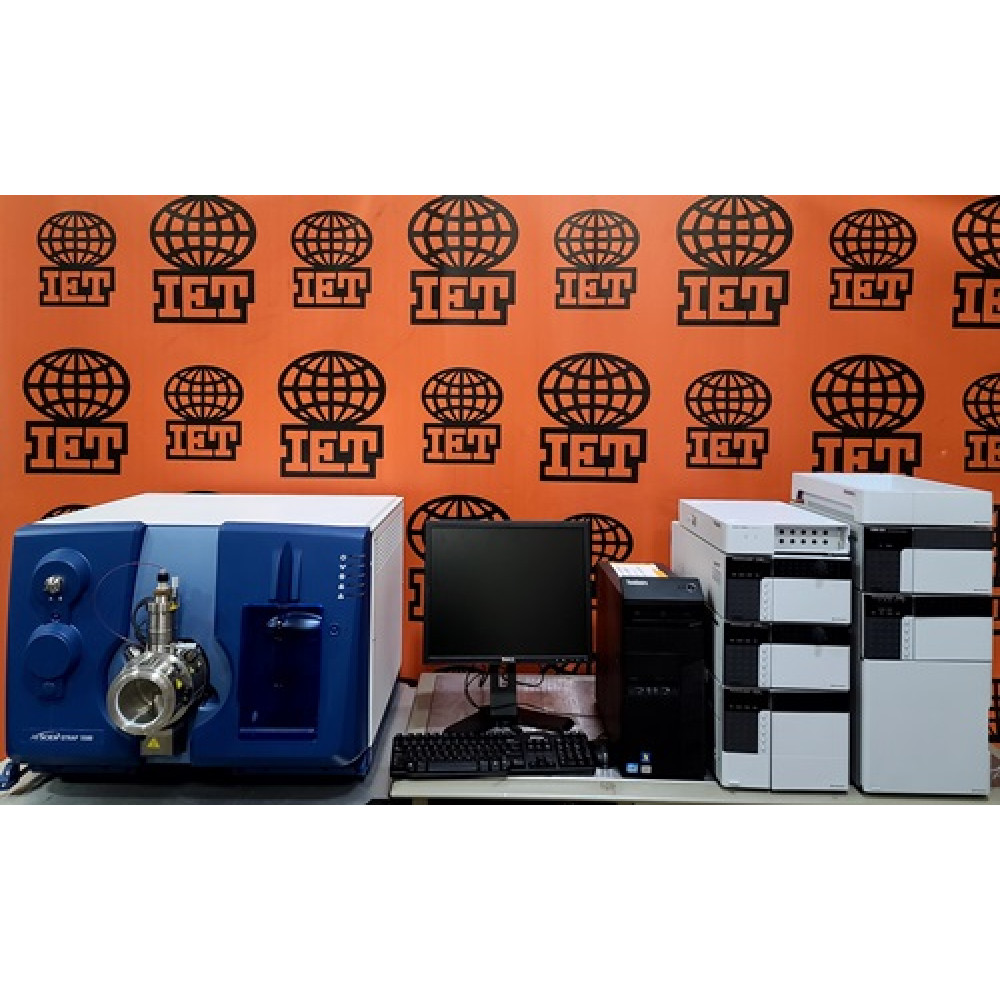

Refurbished Sciex 5500 QTRAP LC/MS/MSn (p/n 5019850) mass spectrometer complete with Turbo V-Source with ESI Probe, MS40+ Vacuum Pump with hose, and Windows 10 Analyst 1.7 PC workstation. Ask about adding the Sciex SelexION device for differential ion mobility spectrometry.
QTRAP 5500 data sheet.pdfRefurbished Sciex 5500 QTRAP LC/MS/MSn (p/n 5019850) mass spectrometer complete with Turbo V-Source with ESI Probe, MS40+ Vacuum Pump with hose, and Windows 10 Analyst 1.7 PC workstation. Ask about adding the Sciex SelexION device for differential ion mobility spectrometry.
This DMS tool delivers highly-selective, robust and powerful ion separation that significantly enhances your quantitative and qualitative performance. Designed to be simple to install without the need to break vacuum on your mass spectrometer, and compatible with UHPLC timescales, this separation device can help you address your biggest analytical challenges. Mass range of m/z 5 to 1250 in triple quadrupole mode and m/z 5-1000 in linear ion trap (LIT) mode. The Q-TRAP 5500 is designed to excel at metabolite identification, detection and confirmation of low-level pesticides, and protein/peptide quantitation for biomarker verification and validation. Ultra-fast and selective MRM scans mean you can target and quantify thousands of compounds in a single analysis.
OPTIONAL: SelexION device for ion mobility, choice of LC, custom Peak Scientific bench on wheels, Nanospray II Source, APCI probe, Nitrogen Generator.
FEATURES
*Perform multiple reaction monitoring (MRM) for quantitation using this high-sensitivity triple quadrupole system.
*Identify, characterize, and quantitate metabolites more quickly and easily.
*Discover and quantitate targeted biomarkers.
*Enable high-sensitivity full-scan MS, MS/MS, and MS3 with high-selectivity from true triple quadrupole precursor ion (PI) and neutral loss (NL) scans.
*Detector type: AcQuRate Pulse Counting CEM
*Dynamic Range: 5 orders of magnitude
*Ionization Sources: TurboIonSpray, APCI, DuoSpray, PhotoSpray, Nano
*Mass Accuracy/Stability: 0.1 Da over 24 hours
*Mass Range: 5-1,250 (Quad); 50-1,000 (LIT)
*Polarity Switching Time: 50 ms
*Resolution (Linear Ion Trap): 9,200 for m/z 922 at 50 amu/sec
*Scan Speed (Quad): 12,000 Da/sec
*Scan Speed (Linear Ion Trap): 50, 250, 1,000, 10,000, 20,000 Da/sec
*Scan Types: Q1 MS, Q3 MS, Product Ion, Precursor Ion, Neutral Loss or Gain, MRM, EMS, EPI, ER, MS3, MRM3, TripleTrap
Please contact us for complete used/refurbished Q-TRAP 5500 system, warranty and service contract details. (AB/Sciex 5500 mass spec)
OPTIONAL: SelexION device for ion mobility, choice of LC, custom Peak Scientific bench on wheels, Nanospray II Source, APCI probe, Nitrogen Generator.
FEATURES
*Perform multiple reaction monitoring (MRM) for quantitation using this high-sensitivity triple quadrupole system.
*Identify, characterize, and quantitate metabolites more quickly and easily.
*Discover and quantitate targeted biomarkers.
*Enable high-sensitivity full-scan MS, MS/MS, and MS3 with high-selectivity from true triple quadrupole precursor ion (PI) and neutral loss (NL) scans.
*Detector type: AcQuRate Pulse Counting CEM
*Dynamic Range: 5 orders of magnitude
*Ionization Sources: TurboIonSpray, APCI, DuoSpray, PhotoSpray, Nano
*Mass Accuracy/Stability: 0.1 Da over 24 hours
*Mass Range: 5-1,250 (Quad); 50-1,000 (LIT)
*Polarity Switching Time: 50 ms
*Resolution (Linear Ion Trap): 9,200 for m/z 922 at 50 amu/sec
*Scan Speed (Quad): 12,000 Da/sec
*Scan Speed (Linear Ion Trap): 50, 250, 1,000, 10,000, 20,000 Da/sec
*Scan Types: Q1 MS, Q3 MS, Product Ion, Precursor Ion, Neutral Loss or Gain, MRM, EMS, EPI, ER, MS3, MRM3, TripleTrap
Please contact us for complete used/refurbished Q-TRAP 5500 system, warranty and service contract details. (AB/Sciex 5500 mass spec)
